Automatic Feeding System | Intelligent Plug Tray Feeding Line for Pig & Poultry Farm

Product Details

I. Company Profile

Located in Suizhou, Hubei Province – the hometown of Emperor Yan Shennong, the ancient chime bell capital, and China’s special-purpose vehicle hub – Hubei Gongfu Equipment was founded in 2020 as a joint venture with a renowned Taiwanese enterprise specializing in automated animal husbandry equipment for over 40 years.

We are a modern, integrated enterprise integrating R&D, design, manufacturing, sales, installation and after-sales service. With strict management and rigorous quality control, we continuously optimize products and solutions, providing customized full-scenario automated breeding solutions for large-scale pig farms, covering feeding, environmental control, manure treatment, heating, cleaning, disinfection, power generation and more.

II. Core Product System

1. System Overview & Working Principle

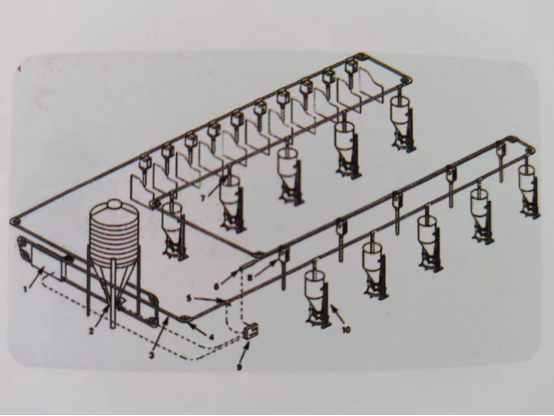

The system works on a closed-loop plug tray conveying principle:

Feed is stored in weatherproof FRP/galvanized silos.
The plug tray host drives a high-strength plastic chain with nylon plugs, moving feed through enclosed pipelines.
Feed is dispensed via adjustable drop feeders to troughs or feeders at preset times and quantities.
The control box manages feeding schedules, line speed, and alerts, while optional load cells provide real-time inventory data.

2. Key System Components

Component	Description

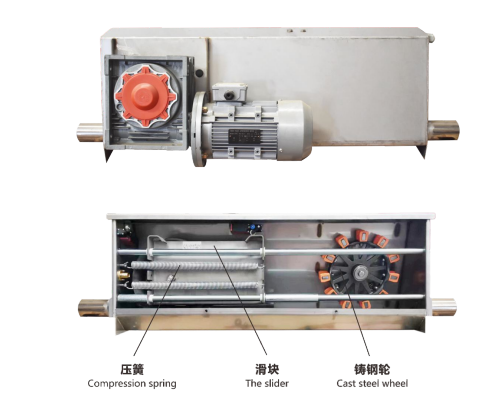

Plug Tray Host (Drive Unit)	Power core of the system, available in 1.5kW/2.2kW, drives the chain. Features stainless steel casing, wear-resistant wheels, and anti-jamming protection.
Enclosed Pipeline	Galvanized steel or PVC pipe, fully enclosed to prevent contamination, moisture, and pest intrusion.
Plug & Chain	High-toughness nylon plugs + food-grade plastic chain, durable and low-noise.
Drop Feeders	Adjustable feeders with optional anti-waste flaps, available in manual or automatic versions.
Control Box	Intelligent control unit for setting feeding times, portions, and alarms. Supports multiple lines.
Feed Silo	FRP or galvanized steel tower, available in 2.5T to 35T capacity, compatible with bulk feed trucks.

3. Main Models & Technical Parameters

Model	Type	Delivery Distance	Capacity (kg/h)	Suitable Application
FD-60	Quantitative Feeding	60m	700-800	Nursery & Growing Pigs
FD-75	Ad Libitum Feeding	80m	1200-1500	Nursery & Finishing Pigs
FD-110	External Delivery	50m	3500-4500	Centralized Off-Site Feeding

4. Core Advantages

✅ Labor Cost Reduction: Eliminates manual feeding, reducing labor needs by 70%+ and freeing staff for other farm tasks.

✅ Precision Feeding: Adjustable feeding times, frequencies, and portions to match animal growth stages, improving feed conversion ratio (FCR) by 5-8%.

✅ Biosecurity & Hygiene: Fully enclosed pipeline prevents feed contact with the external environment, reducing contamination risks from pests, birds, and pathogens.

✅ Animal Welfare: Stress-free, uniform feeding reduces competition and aggression among animals, improving growth rates and uniformity.

✅ Low Maintenance: Durable components and modular design ensure long service life, with minimal cleaning and upkeep required.

5. Applications & Compatibility

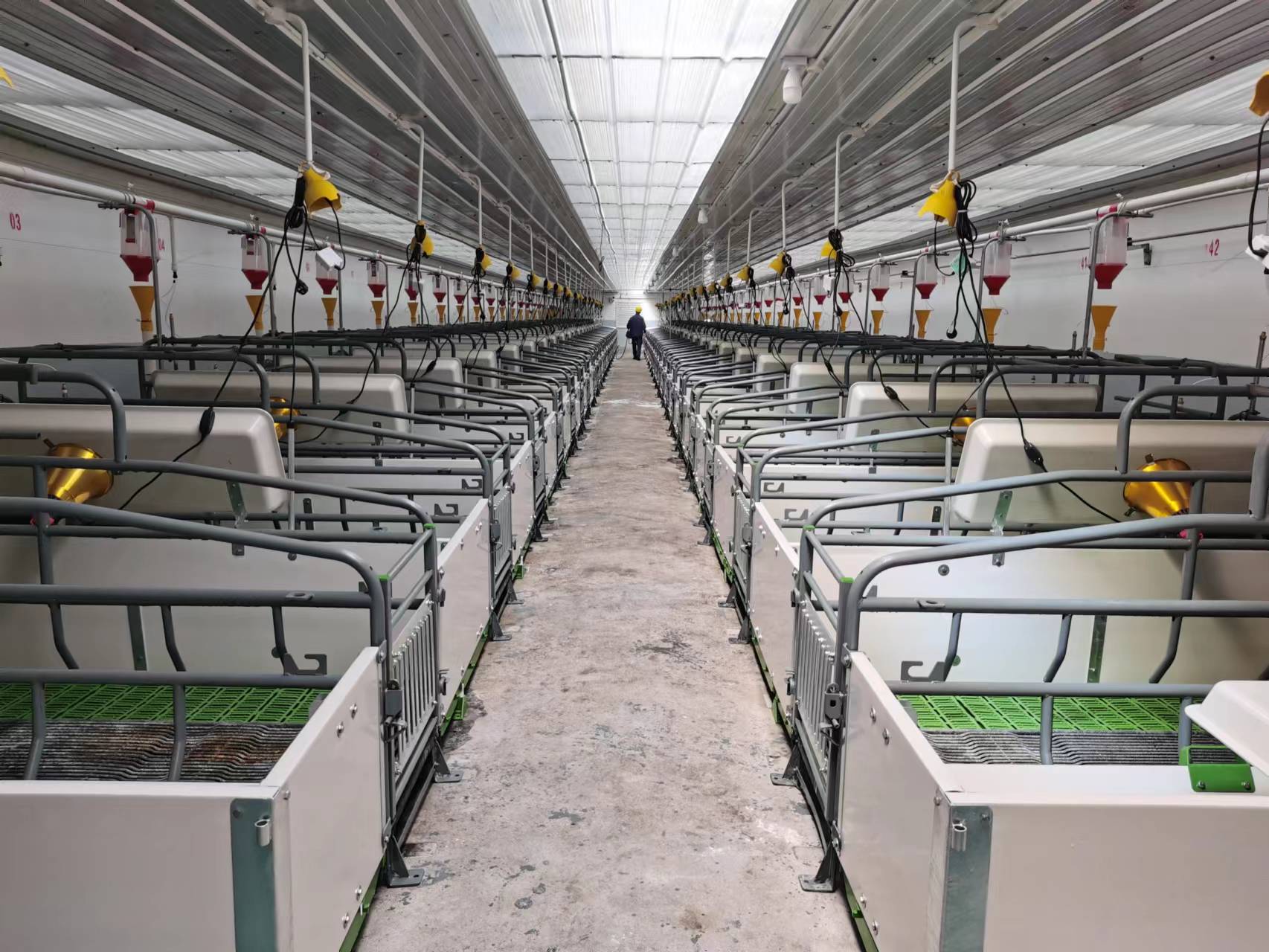

Livestock Types: Pig farms (gestation, farrowing, nursery, finishing), broiler/breeder poultry farms, and dairy cattle barns.
Farm Scale: Small to large-scale operations, supporting single-line or multi-line configurations.
Feed Types: Dry granular feed, powdered feed, and compound feed.
Integration: Works seamlessly with our feed silos, bulk feed trucks, intelligent weighing systems, and farm management software.
